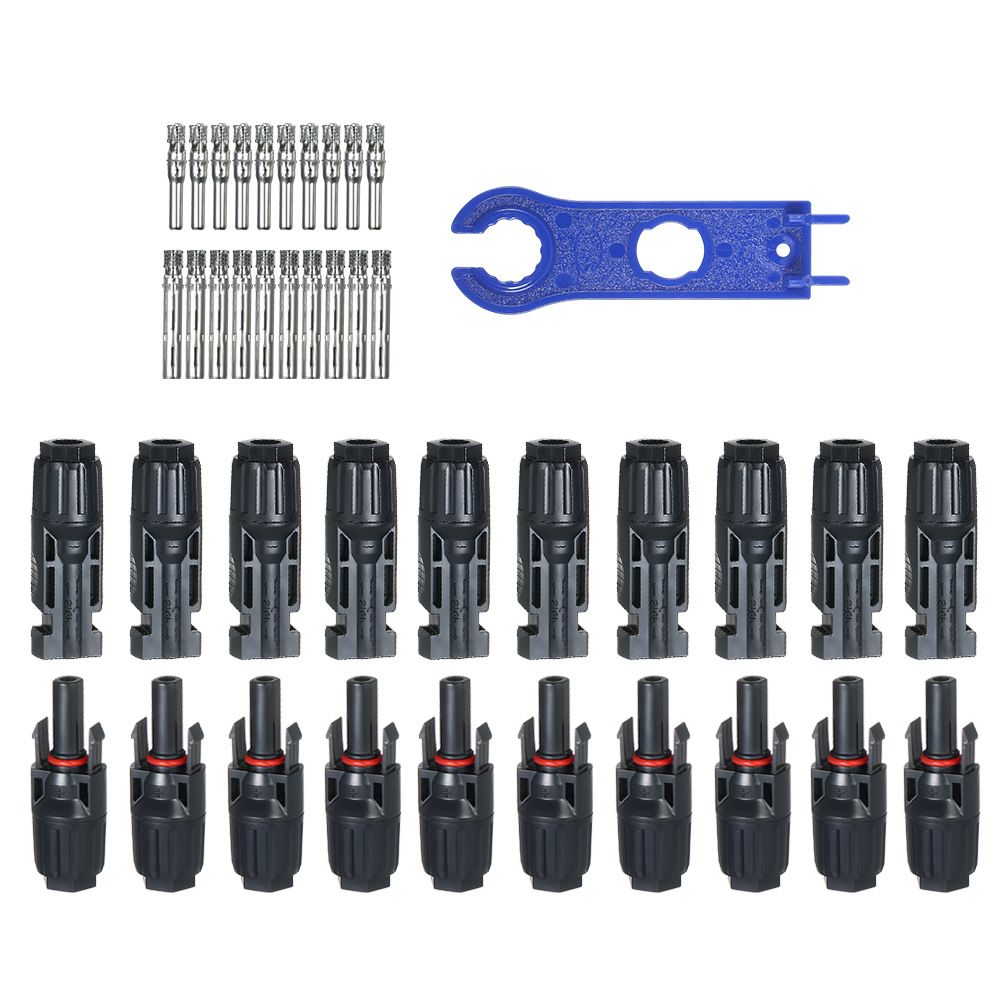

10 Pairs Solar Connectors with Spanner Solar Panel Cable Connectors Male & Female Solar Panel Connectors
$15.00
- Model JIPUTVAK
- Availability: In Stock
- Ex Tax: $15.00
Features:
Compared with premade cables, they will be more money-saving.

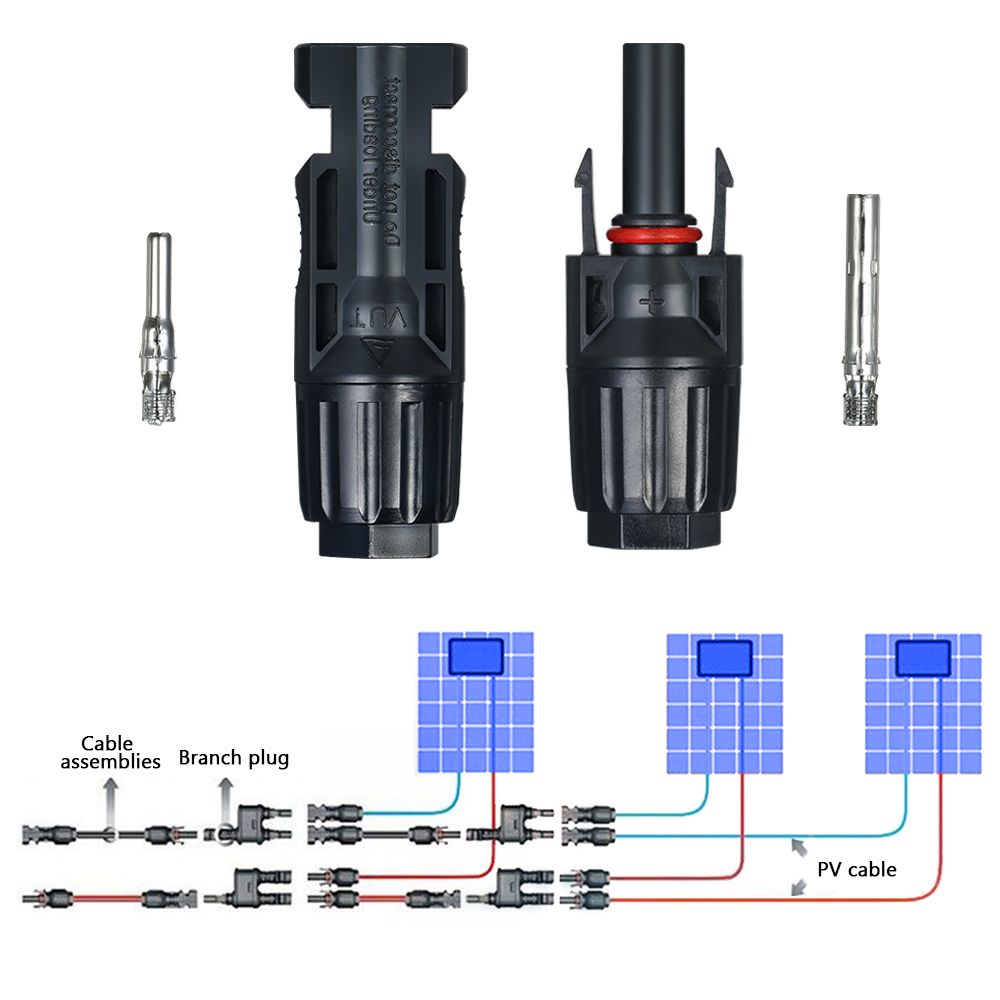

You can use these to create cables of your own custom length.
These will work nicely with other mating connectors.

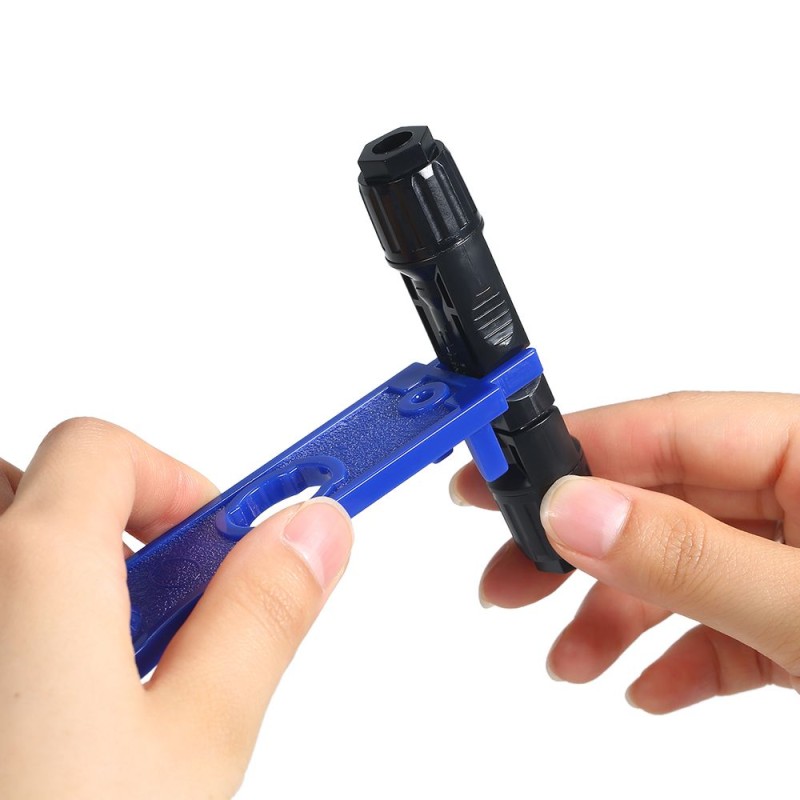

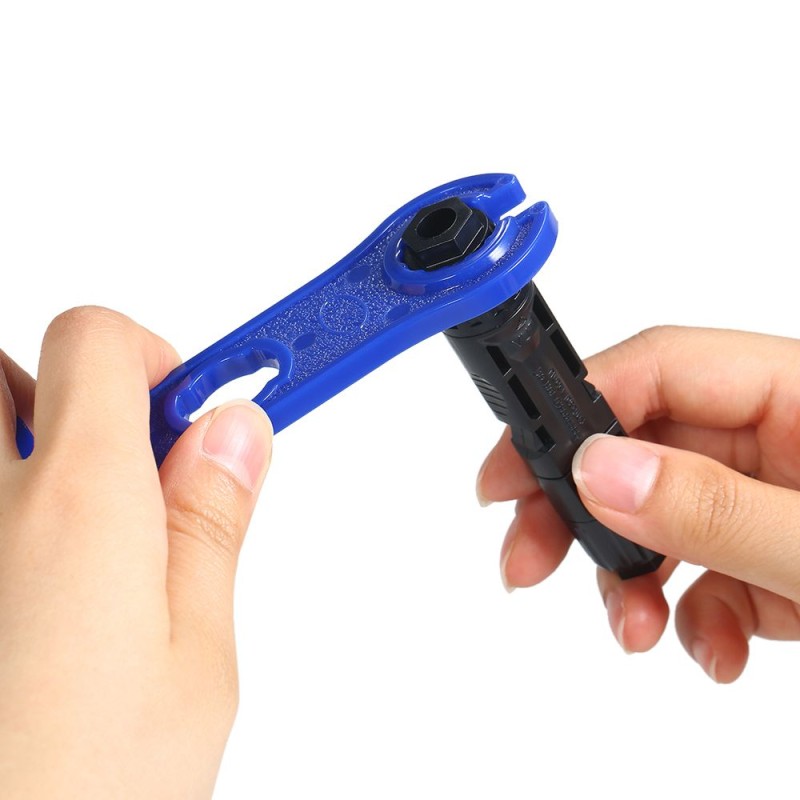

10 Pairs of solar connectors and a spanner are included.
Solid and good quality, easy to put together.
Specification:
Type: Solar & Wind Power Parts & Accessories
Color: Black
Rated Voltage: 1000 V
Rated Impulse Voltage: 1000 V
Rated Current: 24A - 14 AWG (2.5mm2), 30A - 12 & 10 AWG (4mm2 & 6mm2)
Test Voltage: 6 kV (50 Hz)

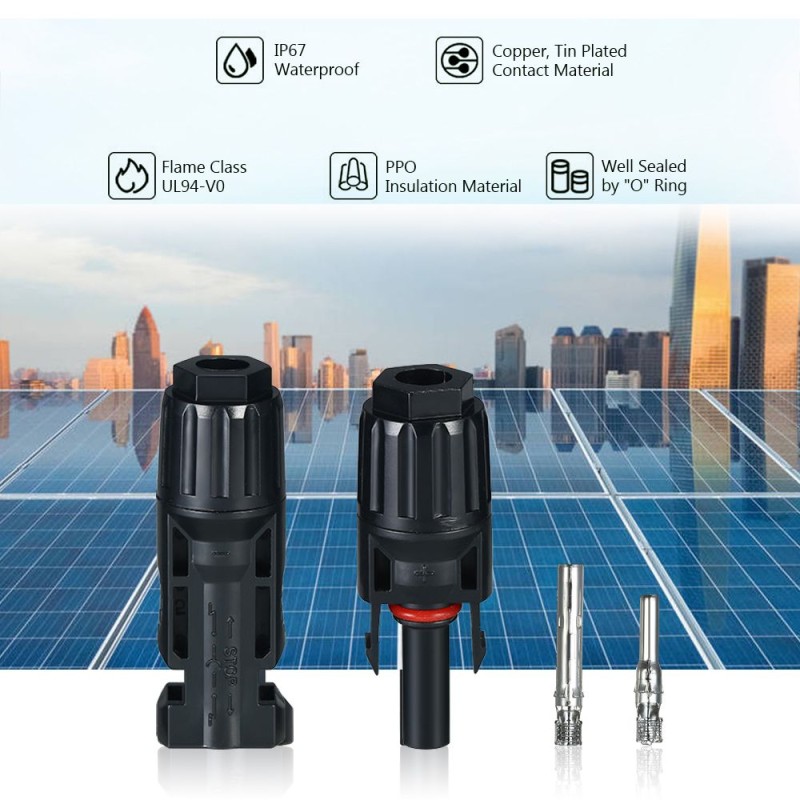

Protection Grade: IP67
Insulation Material: PC / PA
Contact Material: Copper, Silver-plated
Operating Temperature: -40°C ~ +90°C
Safety Class: II
Flame Class: UL94-V0
Contact Resistance: ≤5mΩ
Insertion / Withdrawal Force: ≤50N / ≥50N
Suitable for Cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm2)
Locking System: Snap-in
Package Size: Approx. 18 * 12 * 4cm / 7.09 * 4.72 * 1.57in
Package Weight: Approx. 213g / 7.51oz
Package List:

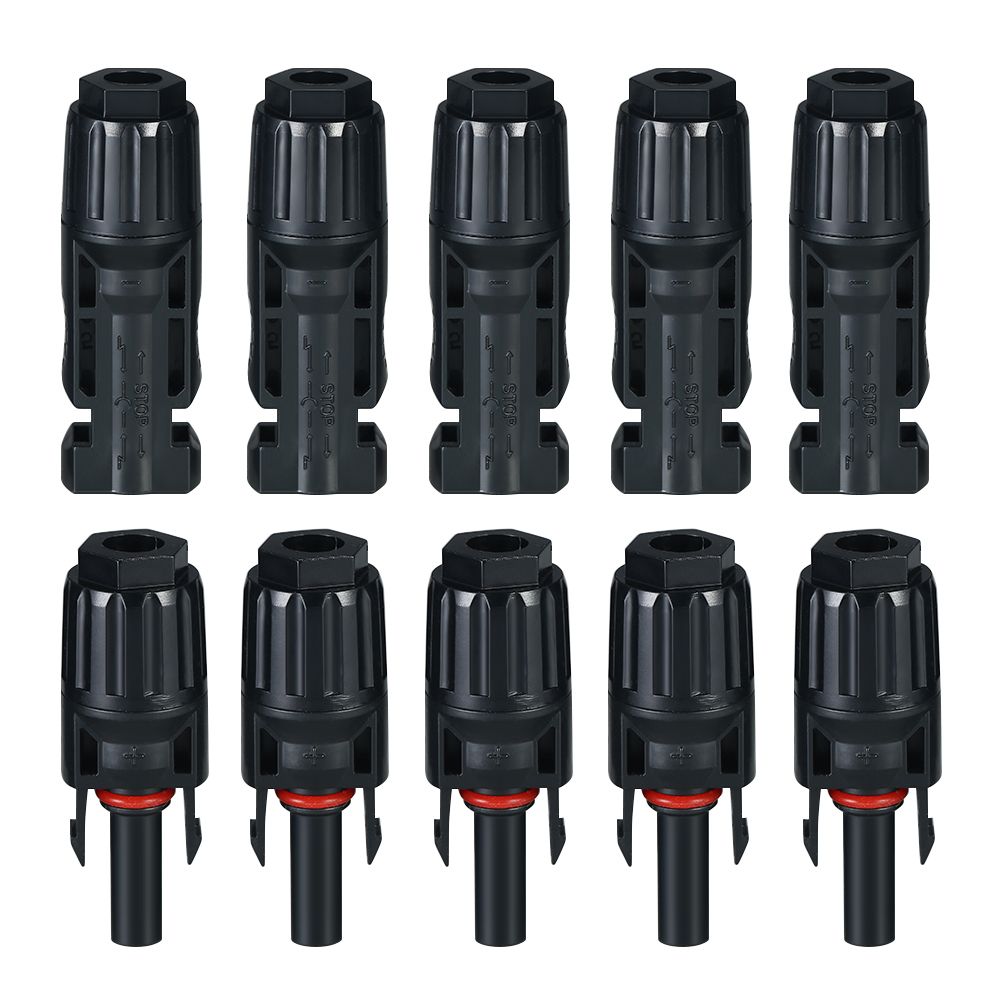

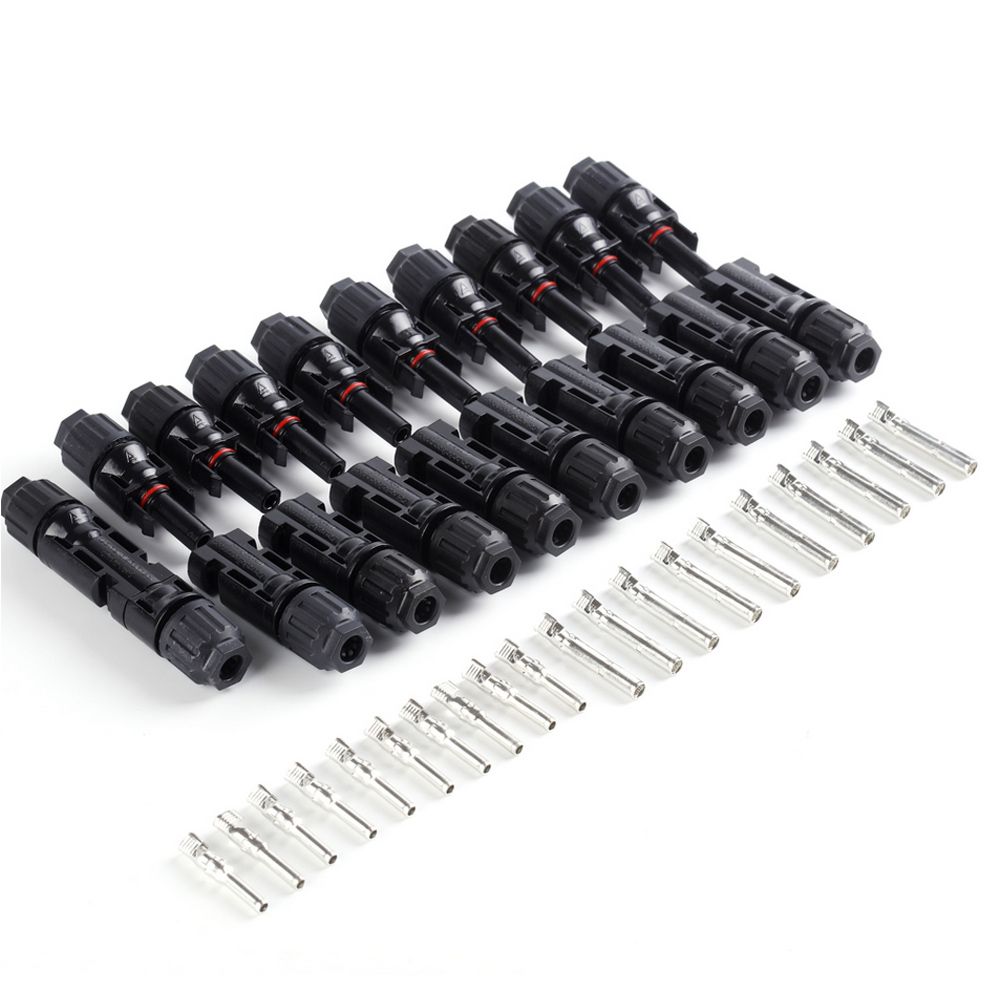

10 Pair * Solar Connectors
1 * Spanner
